LED High Bay vs Hlau Halide

Taw qhia

Hauv cov chaw tsim khoom lag luam, chaw khaws khoom thauj khoom, thiab cov chaw ua haujlwm loj -, cov teeb pom kev zoo feem ntau suav txog 18% txog 35% ntawm lub tsev siv hluav taws xob ua haujlwm tag nrho. Tau ntev, ntau qhov chaw qub tau tso siab rau siab - siv lub teeb tawm (HID) cov teeb, nrog cov hlau halide teeb yog hom siv ntau tshaj plaws.

Tsav los ntawm kev ua tau zoo ntawm kev ua tau zoo ntawm kev ua tau zoo ntawm - lub zog LED chips thiab kev nce qib hauv kev tswj xyuas thermal, siab - bay LED teeb tau hloov pauv sai saihlau halide teeb. Kab lus no nthuav tawm cov txheej txheem, kev sib piv ntau ntawm ob lub thev naus laus zis, tsom mus rau qhov kev ua haujlwm ntawm lub cev, kev hloov pauv hluav taws xob, thiab cov nqi ua haujlwm tiag tiag.

Kev sib piv ntawm Cov Ntsiab Cai thiab Cov Khoom Siv Lub Cev

Cov lus hauv qab no sib piv cov ntsiab lus tseem ceeb ntawm tus qauv 400W hlau-halide teeb qhov system nrog 150W siab-kev ua haujlwm zoo LED siab-bay teeb sib phim rau tib lub teeb pom kev zoo:

Hauv -Kev Ntsuas Qhov tob: Plaub Qhov Kev Zoo Tshaj Plaws ntawm LEDs Hloov Hlau-Halide Teeb

Electro{0}}Kev hloov kho qhov muagEfficiency thiabDkev xavUtilizationKev ua tau zoo

Hlau halide teeb muaj cov duab kheej kheej lossis tubular teeb pom kev zoo uas nthuav tawm lub teeb nyob rau hauv tag nrho 360℃cov lus qhia. Lawv yuav tsum cia siab rau cov reflectors los ua qhov project lub teeb downwards, thiab lub teeb poob thaum lub sij hawm reflection yuav siab li 30% -40%.

LEDs yog cov khoom siv- lub xeev qhov chaw teeb pom kev zoo, thiab lawv lub emission lub kaum sab xis tuaj yeem tswj tau los ntawm ob lub qhov muag pom qhov muag (xws li 60 degree, 90 degree, 120 degree), nrog rau kev siv cov luminous flux ntawm ze li ntawm 90%. Yog li ntawd, 150W LED kev lag luam thiab cov teeb pom kev lag luam tuaj yeem ua tau raws li tag nrho lossis txawm tias tshaj qhov zoo hauv av illuminance (Lux) ntawm 400W hlau halide teeb.

Thermal Control thiabEnvironmentalAdaaptability

Hlau halide teeb ua haujlwm ntawm qhov kub txog li 800℃-1000℃ntawm qhov chaw ntawm lub raj xa tawm. Cov kub saum npoo no tsis tshua muaj siab ua rau cov khoom siv teeb rau lub hnub nyoog sai, thiab qhov kub ntawm cov hluav taws xob ntau yog ncaj qha mus rau thaj chaw ua haujlwm. LEDs, ntawm qhov tod tes, siv tuag- nrum txhuas alloy lossis tooj liab tube cua sov dab dej, thiab lawv qhov kub thiab txias feem ntau tswj qis dua 85℃. Qhov no tsis yog tsuas yog ua rau muaj kev ruaj ntseg siab dua tab sis kuj txo qis kev siv hluav taws xob rau cov cua txias hauv kev cob qhia lub caij ntuj sov.

Lumen Depreciation Curve thiab Kho Cov Nqi

Hlau halide teeb raug kev txom nyem los ntawm cov tshuaj lom neeg lub teeb lwj. Tom qab 3,000 teev ntawm kev ua haujlwm, lawv cov luminous flux feem ntau txo qis dua 30%; nyob rau hauv sib piv, siab - zoo LED muaj thiab mining teeb, sim siv LM-80 tus qauv, feem ntau pom lub teeb lwj ntawm tsawg dua 3% tom qab 10,000 teev ntawm kev ua haujlwm tas mus li. Qhov siab ntawm cov hlau halide teeb tsis ua haujlwm txhais tau hais tias cov chaw tsim khoom nquag siv txiab nqa lossis scaffolding los hloov qhov muag teev, thiab cov nqi ua haujlwm thiab kev poob qis los ntawm kev ua haujlwm ntawm qhov siab feem ntau tshaj tus nqi ntawm cov qij lawv tus kheej.

Kev suav lej ntawm Economic Viability thiab Return on Investment (ROI)

Piv txwv li, piv txwv li, ib qho nruab nrab - qhov loj me ntawm kev sib dhos rhiav nruab nrog 100 400W hlau- halide teeb; Piv txwv tias lawv ua haujlwm rau 16 teev hauv ib hnub, 365 hnub hauv ib xyoos, thiab suav cov nqi hluav taws xob ntawm 0.85 RMB / kWh:

Ua ntej Retrofit (Hlau -Halide Teeb System):

• Kev siv hluav taws xob ib lub teeb=400W (lub teeb) + 45W (ballast poob)=445W=0.445kW
• Tag nrho cov hluav taws xob txhua xyoo=100 × 0.445 kW × 16 h / hnub × 365 hnub=259,880 kWh
• Tus nqi hluav taws xob txhua xyoo yog=259,880 × 0.85=220,898 yuan

Tom qab hloov kho (Hloov nrog 150W LED High-Bay Teeb):

• Kev siv hluav taws xob ib lub teeb=150 W=0.15 kW
• Tag nrho cov hluav taws xob txhua xyoo=100 × 0.15 × 16 h / hnub × 365 hnub=87,600 kWh
• Tus nqi hluav taws xob txhua xyoo yog=87,600 × 0.85=74,460 yuan

Cov txiaj ntsig ncaj qha nyiaj txiag txhua xyoo:

• Kev txuag hluav taws xob txhua xyoo:220,898 - 74,460=146,438 yuan (kev txuag hluav taws xob ntawm 66.3%)
• Kev txuag nyiaj txhua xyoo:kwv yees15,000 yuan(raws li kev hloov pauv txhua xyoo ntawm 30 hlau halide teeb thiab nqi zog rau kev ua haujlwm siab -qhov siab).
• Tag nrho cov nqi txuag txhua xyoo:161,438 yuan

Piv txwv tias tus nqi ntawm kev yuav khoom thiab txhim kho ib qho siab - zoo 150W LED kev lag luam thiab cov teeb pom kev tsuas yog 350 yuan, tag nrho cov peev nyiaj yog 100 × 350=35,000 yuan.

• Static peev nyiaj rov qab lub sijhawm:35,000 / 161,438 ≈ 0.217 xyoo (kwv yees li 2.6 lub hlis). Ntawd yog, lub kaw lus nkag mus rau theem ntawm cov txiaj ntsig ntshiab pib txij li peb lub hlis tom qab kev kho dua tshiab tiav.

Cov lus pom zoo rau Kev Xaiv Hloov thiab Kev Ua Haujlwm Engineering

Siv rau Kev Xaiv Hloov Hwj Chim Kev Ntsuas

1. Nws raug pom zoo kom hloov ncaj qha250W hlau halide teeb nrog 80W - 100W LED muaj teeb pom kev zoo(installation qhov siab 4-6 meters).
2. Nws raug pom zoo kom hloov ncaj qha400W hlau halide teeb nrog 150W - 200W LED muaj teeb pom kev zoo(installation qhov siab 6-9 meters).
3. Nws raug pom zoo kom hloov ncaj qha1000W hlau halide teeb nrog 300W-400W LED muaj teeb pom kev zoo(rau installation qhov siab ntawm 10 meters los yog ntau tshaj).

Kev txiav txim siab rau kev xaiv khoom siv

1. Lub zog muab khoom zoo:Cov khoom siv hluav taws xob yog lub hauv paus tseem ceeb ntawm LED kev lag luam thiab cov teeb mining nyob rau hauv cov nqe lus ntawm lifespan. Ua ntej tshaj tawm cov khoom siv hluav taws xob muaj zog nrog overvoltage, overcurrent, thiab overtemperature tiv thaiv thiab lub hwj chim (PF) > 0.95 (xws li MeanWell, Philips, thiab lwm yam).
2. Lens angle matching:Rau cov tsev ua haujlwm nqaim thiab sib sib zog nqus (qhov siab> 9 meters), 60℃lossis 90℃lub teeb -emitting lub kaum sab xis yuav tsum tau xaiv los ua kom pom tseeb ntawm lub teeb; Rau kev qhib thiab tsis tshua muaj kev cob qhia (qhov siab <6 meters), 120℃astigmatic lo ntsiab muag yuav tsum tau xaiv los txhim kho cov teeb pom kev zoo sib xws.
3. Kev tiv thaiv ntsuas (IP / IK):Hauv cov chaw ua haujlwm plua plav lossis ntub dej (xws li kev cob qhia textile thiab machining), cov khoom siv teeb pom kev zoo yuav tsum ua kom tau raws li cov plua plav thiab dej tsis zoo ntawm IP65 lossis siab dua thiab cov khoom ua haujlwm poob siab ntawm IK08 lossis siab dua.

Cov lus pom zoo ntawm cov khoom

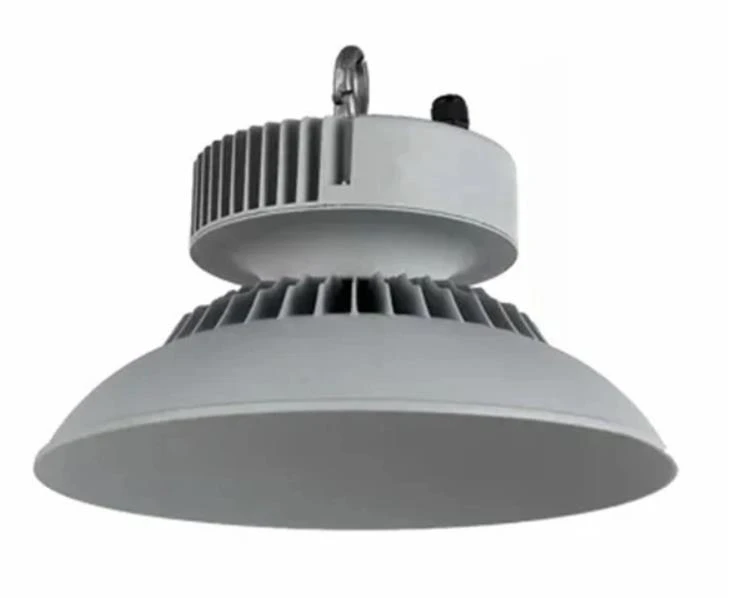

JR Teeb pom kev zooHL01 LED siab -bay teebsiv high -transmittance ultra- iav dawb tempered thiab ntshuam siab -brightness chips, ua tiav 50% kev txuag hluav taws xob piv rau hlau halide teeb thiab muab cov khoom ruaj khov, muaj txiaj ntsig tsis tu ncua - cov zis tam sim no. Nws qhov tseem ceeb tshaj plaws yog kev tiv thaiv - kho qhov muag ntawm lub teeb, nrog UGR<19. high-temperature resistance, and UV protection, boasting both IP65 and IK09 high-protection ratings. With a wide power range of 80W to 250W, it is an ideal choice for lighting large spaces in industrial plants, warehouses, and shopping malls.

Cov lus nug nquag nug (FAQ)

Cov ntsiab lus

Thaum xav txog tag nrho cov kev ua tau zoo luminous, lumen depreciation, tswj kev teb, thiab cov nqi kho, tsis muaj kev cuam tshuam kev lag luam lossis kev lag luam los hloov cov hlau-halide teeb nrogLED siab-bay teeb. Rau cov chaw muaj kev lag luam nrog lub sijhawm ua haujlwm ntev, qhov ua kom sai ntawm LED retrofit ua tiav, qhov tseem ceeb ntawm cov nqi ntxiv -txuag qhov zoo yuav yog.
