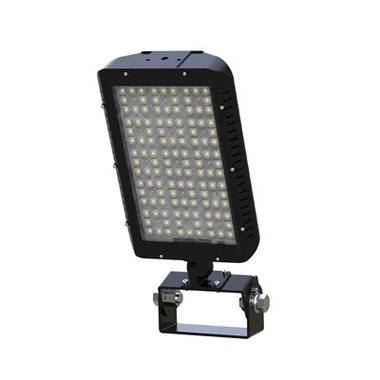

1000 Watt Led Stadium Teeb
Qauv: JR505
Lub Zog: 400W 500W 600W 800W 1000W 1200W
Cov tswv yim Volt: AC100-277V 50/60Hz
Lub teeb pom kev: 150Lm / W
Lub kaum sab xis: 10 ° 15 ° 25 ° 45 ° 60 ° 90 °
Xim kub: 3000-6500K
LED hom: SMD 3030
Daim ntawv pov thawj: UL / ETL / DLC / TUV / CB / ENEC / CE / SAA / FCC / RoHS / CQC
- Product Description
- Khoom nta
- Khoom Paub meej
- Specification
- Photometrics
- Video
- Daim ntawv thov Scenario
- FAQ
- Xa lus nug
- Ntau yam khoom
Product Description
Khoom nta
- 1000 Watt Led Stadium Teeb: Imported Lumileds / OSRAM lub teeb ci, siab ci, tsis pom kev tawg, lub neej ntev.
- Tsav los ntawm thoob ntiaj teb thawj - kab hom, nrog dhau- tiv thaiv qhov kub thiab txias, kev hloov pauv siab, kev siv hluav taws xob siab, kev tiv thaiv hluav taws xob siab thiab lwm yam ntxwv (1-10V, DALI2.0).
- 4 hli siab zog tempered iav, ntxiv txo cov UV thiab tiv thaiv - xeb, feem ntau tsim rau cov ntug dej hiav txwv.
- ADC12 Aluminium Tuag-casting Fixture Housing, Corrosion resistant kho, Anti- xeb, zoo heev thermal tswj, thiab lub neej ntev -yias.
- Polycarbonate Lens & Ntau Beam Angles Anti-UV thiab siab txhua yam muaj zog, IK08. Lub teeb faib: 10 degree, 15 degree, 25 degree, 45 degree, 60℃thiab 90℃xaiv.
- Bracket Installation, ua haujlwm kub: -35℃- +50℃.
Specification
| Qauv | Lub zog (W) | Lub teeb Efficiency | Qty ntawm LED | Qhov voltage (V) | CRI (Ra) | Beam Angle | CCT (K) | THD | Hwj chim Factor | IK Rating | Hom Tsav Tsheb | N.W/G.W (KG) |
Ntim qhov loj (mm) |
| JR505-400W | 400 | 150Lm/W | 864PCS*3030 | AC 100 -277V 50/60Hz |
Ntau dua lossis sib npaug li 70,80, 90 |
10 degree 15 degree 25 degree 45 degree 60 degree 90 degree |
3000~6500 | <10% | ＞0.95 | ib 08 | MW/SOSEN | 16.9/18.9 | 552×539×409 |
| JR505-500W | 500 | 150Lm/W | 864PCS*3030 | 17.4/19.4 | 552×539×409 | ||||||||
| JR505-600W | 600 | 150Lm/W | 864PCS*3030 | 17.9/19.9 | 552×539×409 | ||||||||
| JR505-800W | 800 | 150Lm/W | 1632 pcs * 3030 hli | 33.0/37.0 | 711×690×527 | ||||||||
| JR505-1000W | 1000 | 150Lm/W | 1632 pcs * 3030 hli | 34.0/38.0 | 711×690×527 | ||||||||
| JR505-1200W | 1200 | 150Lm/W | 1632 pcs * 3030 hli | 35.0/39.0 | 711×690×527 | ||||||||
| Nco tseg: Tsab ntawv "W" hauv tus qauv no. stands rau AC voltage; "DT" sawv cev rau DC24V; "DF" sawv cev rau DC48V. | |||||||||||||
Loj
Photometrics
Daim ntawv thov Scenario
FAQ
Q: Dab tsi yog qhov voltage ntawm koj LED dej nyab lub teeb?
A: Peb muab qhov voltage ntau ntawm AC100 ~ 277V thiab DC12V / DC24V / DC48V.
Q: Koj cov khoom sib piv li cas rau cov khoom zoo sib xws hauv kev ua lag luam?
A: Peb cov khoom muaj txiaj ntsig zoo, lub teeb yuag, tiv thaiv -corrosive, thiab tiv thaiv- kev ua haujlwm poob siab.
Q: Koj tau txais ntawv pov thawj dab tsi?
A: Peb lub teeb LED yog CSA, SAA, CE, thiab BIS{0}} pom zoo.
Q: Dab tsi yog daim ntawv thov rau koj lub teeb dej nyab LED?
A: Peb LED dej nyab teeb yog dav siv nyob rau hauv Diesel / Hnub Ci / Hybrid teeb pom kev zoo yees, chaw ntau pob, Chaw ua si, Chaw nres nkoj, Chaw tsim khoom, Chaw Tsim Kho, Chaw nres nkoj, Chaw Nres Tsheb thiab lwm yam
Q: Dab tsi yog qhov luminous efficiency ntawm koj LED Dej nyab lub teeb?
A: Peb LED Dej nyab lub teeb muaj 150 ~ 200lm / w.
Q: Koj puas muab kev lees paub rau cov khoom?
A: Yog, Peb muab 2-xyoo lav rau DC LED teeb thiab 3-xyoo lav rau AC LED teeb (Yog tias lub tshuab hluav taws xob siv hluav taws xob tsim hluav taws xob, lub sijhawm lav yog 3 xyoos; yog tias siv nrog lub zog hluav taws xob, lub sijhawm lav yog 5 xyoos)
Q: Koj lub Hoobkas puas tuaj yeem ua lub teeb raws li cov neeg siv khoom tsim?
A: Yog, peb muab kev pabcuam OEM thiab ODM, peb tuaj yeem tsim thiab tsim raws li tus neeg thov kev thov, thiab peb muaj cov kws tshaj lij engineers rau R & D.
Q: Koj puas yog lub Hoobkas lossis tuam txhab lag luam?
A: Peb yog lub Hoobkas thiab kev lag luam kev koom ua ke. peb lub chaw muag khoom thiab R & D department nyob hauv Shanghai, thiab lub Hoobkas nyob hauv Suzhou City. Peb txais tos cov neeg siv khoom tuaj xyuas peb lub Hoobkas.
