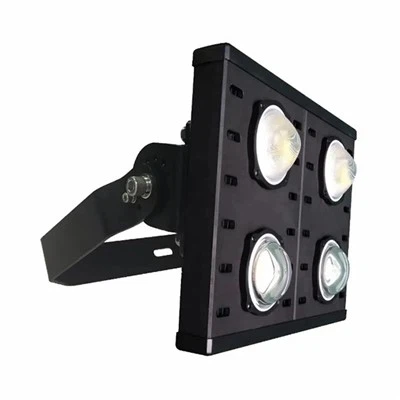

1000W LED Dej nyab lub teeb
Qauv: JR303
Hwj chim: 100W 150W
Tawm tswv yim Volt: AC100-277V DC24V DC48V
Lub teeb pom kev zoo: 120Lm / W
Beam Angle: 80℃120 degree
Xim kub: 3000-6000K
LED HOM: COB
Daim ntawv pov thawj: CE / ROHS / IP65 / IK08 / ISO9001 / ISO14001
- Product Description
- Khoom nta
- Khoom Paub meej
- Specification
- Photometrics
- Video
- Daim ntawv thov Scenario
- FAQ
- Xa lus nug
- Ntau yam khoom
Product Description
JR303 12V LED dej nyab teeb pom kev zoo nrog nws cov kev ua tau zoo tshaj thiab ntau yam kev siv. Kev tshawb fawb kev lag luam qhia tau hais tias muaj kev xav tau sai rau cov khoom siv teeb pom kev zoo sab nraum zoov, tshwj xeeb hauv kev tsim kho, kev ruaj ntseg, thiab kev ua si sab nraum zoov. JR303 nta siab -kev ua tau zoo COB 12v waterproof coj dej nyab teeb, ua tiav lub teeb pom kev zoo ntawm ntau dua 100 LM / W, ua kom muaj lub teeb pom kev zoo hauv ntau qhov chaw. Cov neeg siv pom cov khoom no tsis yog tsuas yog siv lub teeb pom kev zoo xwb tab sis yog qhov chaw muaj kev nyab xeeb thiab yooj yim, muab kev txhawb nqa thaum hmo ntuj lossis thaum muaj xwm txheej ceev.
Qhov no 24v 12v coj dej nyab teeb muaj ob txoj kev xaiv fais fab: 100W thiab 150W, catering rau ntau yam kev xav tau. Nws cov xim kub yog li ntawm 3000K txog 6000K, haum rau ntau daim ntawv thov, ua kom cov neeg siv tau yooj yim xaiv. Txawm hais tias nws yog hmo ntuj tsaus ntuj lossis ib qho chaw ua haujlwm uas xav tau lub teeb pom kev zoo, JR303 muab cov kev daws teeb meem zoo tshaj plaws.
Kev tsim thiab tsim khoom ntawm JR30312V Led Floodlights waterproof Reflect ib qho kev cog lus rau siab - teeb pom kev zoo. Kev siv cov txheej txheem ntau lawm thiab kev tswj xyuas kom zoo, txhua yam khoom tau dhau los ua cov khoom siv tes ua zoo, embodying "handcrafted precision." Cov neeg txawj ntse siv sij hawm-kev txawj ntse los xyuas kom meej tias txhua yam khoom ua tau zoo tsis yog hauv kev ua tau zoo xwb tab sis kuj muaj kev zoo nkauj.
Lub 24v 12v coj dej nyab lub tsev yog tsim los ntawm cov khoom siv ruaj khov, khav theeb IP65 tsis muaj dej tsis zoo thiab IK09 cuam tshuam, ua kom muaj kev ua tau zoo tshwj xeeb txawm tias nyob hauv ib puag ncig hnyav. Los ntawm qhov kev sib xyaw ua ke ntawm cov khoom siv niaj hnub thiab niaj hnub no, JR303 showcases zoo kawg li thiab txawv style, muab cov neeg siv khoom muaj nqis tshaj qhov zoo nkauj.
Khoom nta
- 1000W Led Floodlight: Siv American LED chips, ib leeg LEDs muab ntau tshaj 100W
- Siv cov thev naus laus zis tshiab Vapor Chamber ua ke nrog LED nti thev naus laus zis, ua tiav cov khoom siv hluav taws xob sib cais, txhim kho cov chips thiab radiator cua sov- hloov pauv tus nqi
- Qhov zoo ntawm aluminium alloy extrusion; siv cov txheej txheem cua tshuab cua tshuab, cua tshuab thiab pob tshab hluav taws xob fins, txo 12V LED dej nyab lub teeb tsis muaj dej tsis sib haum thaum lub sijhawm ua haujlwm overhead thiab ntuj convection rau cua sov dissipation
- Haum rau cov yam ntxwv plua plav ntawm sab nraum zoov, qhov chaw tsim kho, mines thiab lwm yam ib puag ncig, siv qhov cua thiab cov pob tshab hluav taws xob, kom tsis txhob muaj plua plav paug ntawm cov hluav taws xob fins, kom ntseeg tau tias cov cua sov dissipation uas ua rau lub neej ntev ntawm LEDs.
- Lub teeb yuag thiab adjustable lub teeb lub kaum sab xis
- Lub lens tshwj xeeb optical, scientific teeb faib raws li daim ntawv thov
- Haum rau factories, industrial sites, sports fields, gas stations, chaw nres tsheb, chaw nres tsheb halls, railway chaw nres tsheb, chaw nres nkoj installation thiab mobile teeb yees thiab lwm yam.
Khoom Paub meej
Specification
| Qauv | Lub zog (W) | EPIN tooj | Lub teeb Efficiency | Qhov voltage (V) | CRI (Ra) | Beam Angle | CCT (K) |
Ib puag ncig Kub |
Lub Sijhawm Lub Neej (H) | Ctn / Pcs | NW/GW (KG) | Packing loj (mm) |
| JR303-100W | 100 | 1 | 120 Lm/W |
AC100-277V DC 24 V dc48v ua |
＞70 | 80℃120 degree | 3000~6000 | -40 ~ 50 degree | Ntau dua lossis sib npaug li 50000 | 1 | 6.8/8.0 | 380×370×240 |
| JR303-150W | 150 | 1 | 120 Lm/W | 1 | 7.8/9.0 | 380×370×240 | ||||||
| Nco tseg: Tsab ntawv "W" hauv tus qauv no. stands rau AC voltage; "DT" sawv cev rau DC24V; "DF" sawv cev rau DC48V. | ||||||||||||
Loj
| tus qauv | a | b | c | d |
| JR303-100W | 310 | 351 | 300 | 364 |
| JR303-150W | 320 | 390 | 330 | 394 |
Photometrics
Video
Daim ntawv thov Scenario
FAQ
Q: Dab tsi yog qhov voltage ntawm koj LED dej nyab lub teeb?
A: Peb muab qhov voltage ntau ntawm AC100 ~ 277V thiab DC12V / DC24V / DC48V.
Q: Koj cov khoom sib piv li cas rau cov khoom zoo sib xws hauv kev ua lag luam?
A: Peb cov khoom muaj txiaj ntsig zoo, lub teeb yuag, tiv thaiv -corrosive, thiab tiv thaiv- kev ua haujlwm poob siab.
Q: Koj tau txais ntawv pov thawj dab tsi?
A: Peb lub teeb LED yog CSA, SAA, CE, thiab BIS{0}} pom zoo.
Q: Dab tsi yog daim ntawv thov rau koj lub teeb dej nyab LED?
A: Peb LED dej nyab teeb tau dav siv nyob rau hauv Diesel / Hnub Ci / Hybrid teeb pom kev zoo yees, chaw ntau pob, Chaw ua si, Chaw nres nkoj, Chaw tsim khoom, Chaw tsim kho, Chaw nres nkoj, Chaw Nres Tsheb thiab lwm yam
Q: Dab tsi yog qhov luminous efficiency ntawm koj 12V Led floodlights waterproof?
A: Peb LED Dej nyab lub teeb muaj 150 ~ 200lm / w.
Q: Koj puas muab kev lees paub rau cov khoom?
A: Yog, Peb muab 2-xyoo lav rau DC LED teeb thiab 3-xyoo lav rau AC LED teeb (Yog tias lub tshuab hluav taws xob siv hluav taws xob tsim hluav taws xob, lub sijhawm lav yog 3 xyoos; yog tias siv nrog daim phiaj fais fab, lub sijhawm lav yog 5 xyoos)
Q: Koj lub Hoobkas puas tuaj yeem ua lub teeb raws li cov neeg siv khoom tsim?
A: Yog, peb muab kev pabcuam OEM thiab ODM, peb tuaj yeem tsim thiab tsim raws li tus neeg thov kev thov, thiab peb muaj cov kws tshaj lij engineers rau R & D.
Q: Koj puas yog lub Hoobkas lossis tuam txhab lag luam?
A: Peb yog lub Hoobkas thiab kev lag luam kev koom ua ke. peb lub chaw muag khoom thiab R & D department nyob hauv Shanghai, thiab lub Hoobkas nyob hauv Suzhou City. Peb txais tos cov neeg siv khoom tuaj xyuas peb lub Hoobkas.
Cim npe nrov: 1000w coj dej nyab teeb, Tuam Tshoj 1000w coj dej nyab teeb manufacturers, lwm tus neeg, Hoobkas
