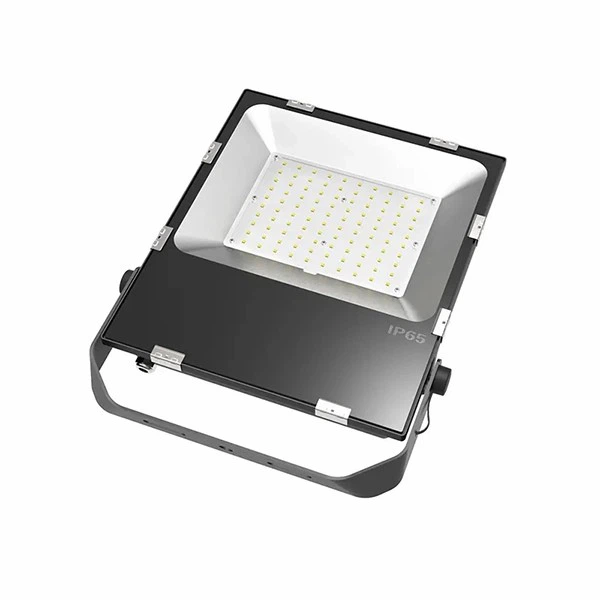

Led Dej nyab lub teeb 200W Ip65
Qauv: JR311
Lub Zog: 50W 100W 150W 200W
Tawm tswv yim Volt: AC100-277V DC24V DC48V
Lub teeb pom kev: 130Lm / W
Beam Angle: 110 degree
Xim kub: 3000-6000K
LED hom: SMD3030
Daim ntawv pov thawj: CE / ROHS / IP65 / IK08 / ISO9001 / ISO14001
- Product Description
- Khoom nta
- Khoom Paub meej
- Specification
- Photometrics
- Video
- Daim ntawv thov Scenario
- FAQ
- Xa lus nug
- Ntau yam khoom
Product Description
Nrog rau qhov ua tau zoo - cov zis tawm tau zoo, JR311 series sab nraum zoov dej nyab teeb pom kev zoo xa tuajluminous flux txog li 22,000 lumens(rau tus qauv 200W), ua rau nws muaj kev vam khom rau kev nthuav dav kev lag luam thiab sab nraum zoov ib puag ncig. Nrogbeam angles ncav cuag 110 degreethiabxim kub adjustable ntawm 3000K thiab 6000K, cov teeb pom kev zoo sab nraum zoov no tuaj yeem tsim kho kom haum rau cov kev xav tau ntawm lub teeb pom kev zoo, los ntawm kev ua haujlwm ci ntsa iab mus rau lub teeb pom kev zoo. Nruab nrog atus tsav tsheb tam sim no tsis tu ncua, JR311 series sab nraum zoov dej nyab teeb pom kev zoo ua kom cov zis ruaj khov thiab ua rau lub neej ntev tshaj li 50,000 teev, ua kom muaj kev ua tau zoo thiab ruaj khov.
Txhua feem ntawm JR311 series sab nraum zoov dej nyab teeb pom kev zoo qhia txog kev cog lus rau kev ua haujlwm zoo tshaj. Lub rugged ncej, ua ke nrog ib qho tshiabrasterized qauv, txhim kho cov cua sov dissipation, ua kom cov haujlwm txias thiab ua kom lub teeb lub neej ua haujlwm ntev.High -lub zog tempered iavtiv thaiv cov LEDs los ntawm kev cuam tshuam sab nraud, thaum tseem tswj hwm qib siab ntawm lub teeb xa mus.
Cov qauv tsim yog txhawb nqa los ntawm asiab - lub zog adjustable bracket, muab kev ruaj ntseg thiab customizable mounting xaiv rau ob qho tib si nyob ruaj ruaj thiab mobile daim ntaub ntawv. Kev ntsuam xyuas ua haujlwm nyob rau hauv qhov xwm txheej hnyav, JR311 series sab nraum zoov dej nyab teeb pom kev zoo ua haujlwm seamlessly ntawm-40℃thiab 50 degree, xa cov teeb pom kev zoo hauv ob qho chaw muaj kev lag luam hnyav thiab chaw sab nraum zoov xws li chaw ua si, chaw nres tsheb, thiab chaw nres nkoj.
Khoom nta
- Led Flood Light 200W Ip65: Toughened iav, siab hardness, zoo lub teeb transmittance, teeb xim xim
- Rasterized qauv, zoo dua tshav kub dissipation, lifespan yog guaranteed
- High efficiency tas li tam sim no tsav tsheb, ruaj khov kev ua tau zoo, ntev lifespan
- High Power SMD LED, siab luminous efficiency, zoo tshav kub dissipation, tsawg luminous depreciation
- Tsim nyog siv rau factories, industrial sites, sports fields, gas stations, parking lots, station halls, railway stations, ports installations and mobile light towers etc.
Khoom Paub meej
Specification
| Qauv | Lub zog (W) | Lub teeb Efficiency | Qhov voltage (V) | CR (Ra) | Beam Angle | CCT (K) | EnvironmentTemperature | Lub Sijhawm Lub Neej (H) | Ctn / Pcs |
N.W/G.W (KG) |
Packing loj (mm) |
| JR311-50W | 50 | 130 Lm / W |
AC100-277V DC 24 V dc48v ua |
＞70 | 110 degree | 3000~6000 | -40 ~ 50 degree | Ntau dua lossis sib npaug li 50000 | 8 | 1.4/14.0 | 530×365×255 |
| JR311-100W | 100 | 130 Lm / W | 1 | 3.2/4.2 | 510×430×135 | ||||||
| JR311-150W | 150 | 130 Lm / W | 1 | 4.0/5.0 | 510×430×135 | ||||||
| JR311-200W | 200 | 130 Lm / W | 1 | 4.8/6.0 | 555×460×135 | ||||||
| Nco tseg: Tsab ntawv "W" hauv tus qauv no. stands rau AC voltage; "DT" sawv cev rau DC24V; "DF" sawv cev rau DC48V. | |||||||||||
Loj
| tus qauv | a | b | c | d |
| JR311-50W | 265 | 311 | 220 | 50 |
| JR311-100W | 345 | 402 | 295 | 60 |
| JR311-150W | 365 | 430 | 330 | 60 |
| JR311-200W | 400 | 470 | 360 | 60 |
Photometrics
Video
Daim ntawv thov Scenario
FAQ
Q: Dab tsi yog qhov voltage ntau ntawm koj lub teeb pom kev nyab xeeb sab nraum zoov?
A: Peb muab qhov voltage ntau ntawm AC100 ~ 277V thiab DC12V / DC24V / DC48V.
Q: Koj cov khoom sib piv li cas rau cov khoom zoo sib xws hauv kev ua lag luam?
A: Peb cov khoom muaj txiaj ntsig zoo, lub teeb yuag, tiv thaiv -corrosive, thiab tiv thaiv- kev ua haujlwm poob siab.
Q: Koj tau txais ntawv pov thawj dab tsi?
A: Peb lub teeb LED yog CSA, SAA, CE, thiab BIS{0}} pom zoo.
Q: Dab tsi yog daim ntawv thov rau koj lub teeb dej nyab LED?
A: Peb LED dej nyab teeb yog dav siv nyob rau hauv Diesel / Hnub Ci / Hybrid teeb pom kev zoo yees, chaw ntau pob, Chaw ua si, Chaw nres nkoj, Chaw tsim khoom, Chaw Tsim Kho, Chaw nres nkoj, Chaw Nres Tsheb thiab lwm yam
Q: Dab tsi yog qhov luminous efficiency ntawm koj sab nraum zoov dej nyab teeb pom kev zoo?
A: Peb LED Dej nyab lub teeb muaj 150 ~ 200lm / w.
Q: Koj puas muab kev lees paub rau cov khoom?
A: Yog, Peb muab 2-xyoo lav rau DC LED teeb thiab 3-xyoo lav rau AC LED teeb (Yog tias lub tshuab hluav taws xob siv hluav taws xob tsim hluav taws xob, lub sijhawm lav yog 3 xyoos; yog tias siv nrog lub zog hluav taws xob, lub sijhawm lav yog 5 xyoos)
Q: Koj lub Hoobkas puas tuaj yeem ua lub teeb raws li cov neeg siv khoom tsim?
A: Yog, peb muab kev pabcuam OEM thiab ODM, peb tuaj yeem tsim thiab tsim raws li tus neeg thov kev thov, thiab peb muaj cov kws tshaj lij engineers rau R & D.
Q: Koj puas yog lub Hoobkas lossis tuam txhab lag luam?
A: Peb yog lub Hoobkas thiab kev lag luam kev koom ua ke. peb lub chaw muag khoom thiab R & D department nyob hauv Shanghai, thiab lub Hoobkas nyob hauv Suzhou City. Peb txais tos cov neeg siv khoom tuaj xyuas peb lub Hoobkas.
